Operation Principles and Key Features of Four Types of Palletizers: Meeting Industry-wide Requirements

In the final stage of automated production, the efficiency and stability of palletizers directly determine a companys shipment schedule. As a manufacturer with its own facilities, Xupack has developed four major types of palletizers tailored to the production demands and product characteristics across various industries: robotic-arm palletizers, gantry-type palletizers, column-type palletizers, and coordinate palletizers. Each model features unique operational principles and design advantages, precisely meeting requirements ranging from small to medium batch sizes up to large-scale production scenarios.

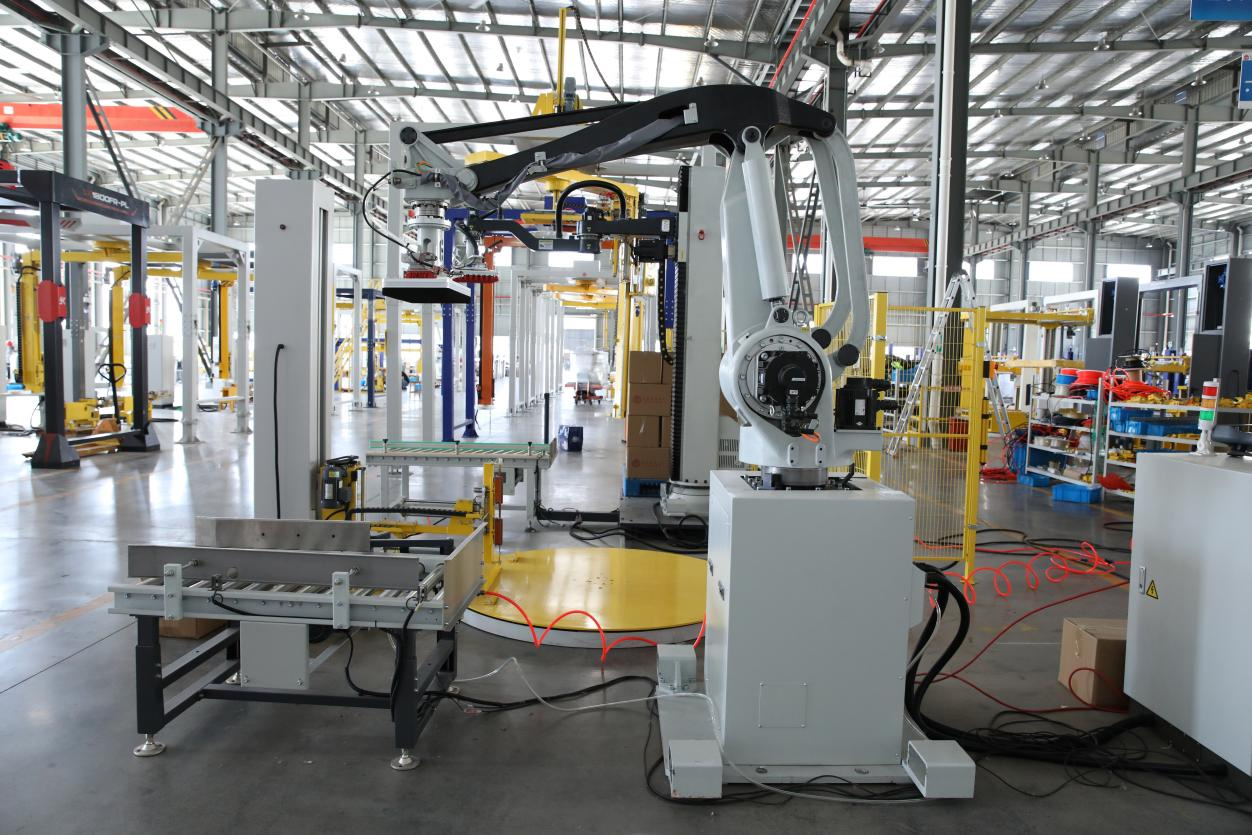

1. Robotic Arm Palletizer: A flexible and efficient all-round solution
Operating Principle
The device employs a multi-joint robotic arm structure, with each joint driven by servo motors to perform coordinated movements in conjunction with the end-effector gripper for precise capture of goods on the conveyor line and stacking according to preset palletizing patterns. Equipped with a visual recognition system, it automatically identifies product locations and dimensions while dynamically adjusting grasping angles and drop points in real time to ensure precise stacking alignment.
Key Features
Highly flexible, capable of accommodating goods in various formats such as boxes, bags, and barrels, with rapid switching between palletizing configurations; featuring fast operation speed ideal for high-volume production scenarios and a compact footprint requiring only the space required by the robotic arms range; customizable grippers with flexible handling for fragile items to prevent damage, making it widely applicable in food, chemical, e-commerce, and other industries.
II. Longmen-type palletizer: The "load-bearing powerhouse" for heavy goods
Operating Principle
With the gantry frame as its core support structure, the moving slider on the crossbeam drives the grippers lateral and longitudinal motion. The bottom conveyor line transports goods to the pickup area; upon capturing the item, the gripper moves along a preset path to the pallet for stacking completion. Heavy-duty rails and high-strength steel ensure stable operation of the equipment under load conditions.
Key Features
It exhibits outstanding load-bearing capacity, effortlessly handling goods with substantial individual box weights; features high stacking accuracy due to the use of closed-loop control technology in the crossbeams, resulting in minimal positioning errors and reduced risk of cargo tipping during stacking; boasts a robust and durable structure suitable for prolonged high-load operations with low maintenance costs, making it the preferred choice for heavy industries such as building materials and machinery manufacturing.
III. Column-type palletizer: An economical and practical "entry-level choice"
Operating Principle
The system employs a single or dual-column structure, with lifting mechanisms on the columns driving the gripper to move vertically and horizontal guides enabling lateral and longitudinal displacement, thereby completing the palletizing cycle of "grasping – lifting – moving – placing." The equipment uses a PLC control system to preset palletizing parameters, offering simple operation without complex calibration requirements.
Key Features
With a compact structure occupying only half the space of a robotic palletizer, it is ideal for small and medium-sized enterprises with limited space. Offering high cost-effectiveness with low procurement costs and operational energy consumption, it meets the palletizing requirements for small to medium batch sizes. Its low operational threshold allows workers to operate it after brief training, making it suitable for small-scale production scenarios in industries such as food and beverage and light manufacturing.
IV. Coordinate-based palletizers: Precise and controllable "customization experts"
Operating Principle
Based on Cartesian coordinate system motion, servo motors precisely control the linear movements of three axes, enabling the gripper to operate accurately within three-dimensional space according to fixed coordinates. Complex stacking paths can be configured in the control system to meet various palletization requirements, achieving multi-layer and multi-specification hybrid palletizing.
Key Features
It features exceptional positioning accuracy, making it ideal for goods requiring strict pallet alignment precision. The system supports simultaneous operation on multiple pallets and can rapidly adapt to different pallet specifications by adjusting coordinate parameters. With robust stability, minimal operational vibration, easy maintenance, and high component compatibility, it is widely used in industries demanding high precision such as pharmaceuticals, electronics, and daily chemical products.
Xupack: Customized solutions tailored to your specific needs, delivering personalized palletizing systems.
As a manufacturer with its own facilities, Xupack not only supplies standardized palletizing machines but also offers customized upgrades tailored to specific customer requirements—such as installing heat-resistant grippers for high-temperature environments, optimizing electrical systems for explosion-proof applications, and adding parameter memory functionality for multi-product line production. Each unit undergoes multiple load tests prior to shipment to ensure stable and reliable performance.
Whether youre a multi-product manufacturer requiring high flexibility, a heavy-duty industry seeking robust load capacity, or a small-to-medium factory with limited budget, Xupack offers tailored palletizing solutions that leverage automation technology to reduce costs, boost efficiency, and complete the final leg of the production cycle.
