YK1800FR-PL-4HJ

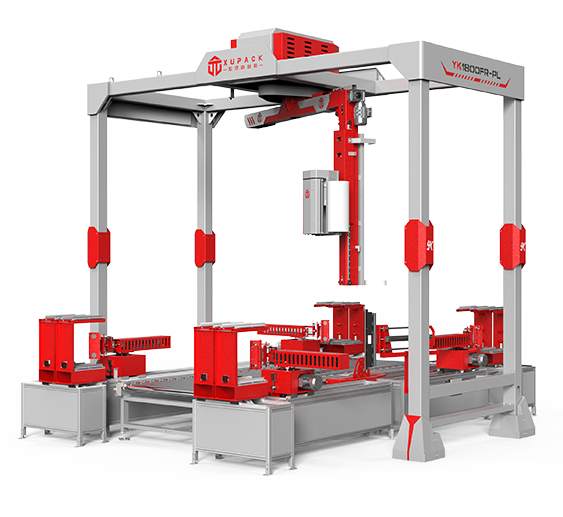

Rotary Arm wrapping Machine&Corner Protection MachineThis set of equipment is designed for integrated use of a rotary arm wrapping machine and a corner protector placing machine in an automated production working pahse. It is developed to provide special protection for the edges and corners of goods during the stretch-wrapping process.

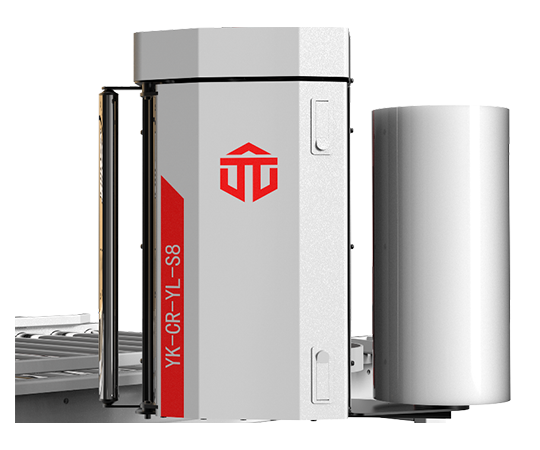

The film frame is equipped with a mechanical tension-retraction function on the upper film holder: it can continuously stretch the packaging film regardless of the roll diameter. The automatic film release inspection utilizes pressure sensors, enabling analog/constant tension film release for more uniform film distribution. The wrapping film can more effectively "clasp" the goods. Door-opening film replacement saves film threading time and enhances efficiency.

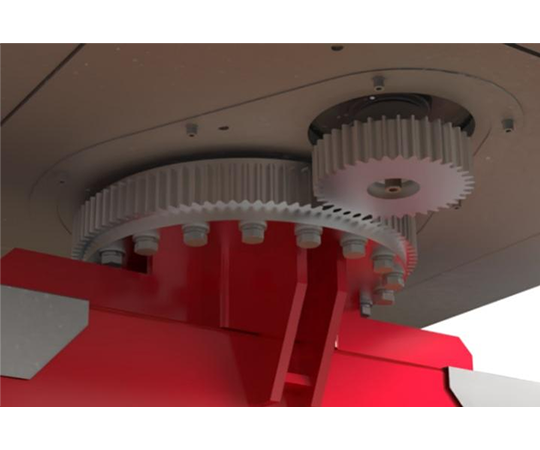

The heavy-duty bearing employs a pinion gear transmission system, with a robust frame ensuring maximum operational reliability under demanding conditions. A frequency converter controls the rotating arm to operate at peak speed, thereby extending the service life and reliability of the transmission mechanism.

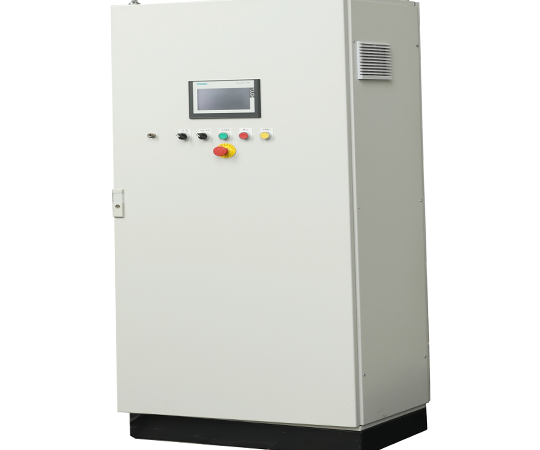

The electrical box can be installed on the outer side of the fence, with remote control via the wiring system.

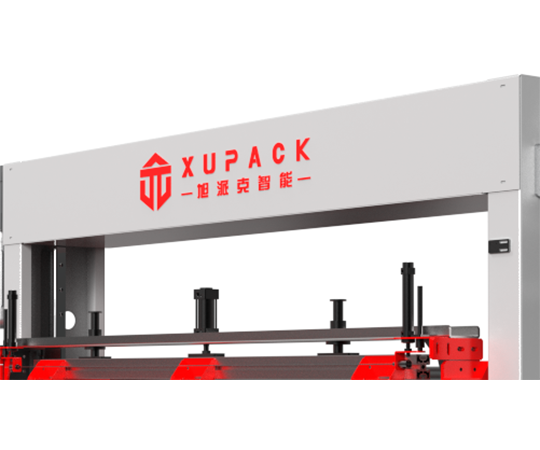

Certified by Zhejiang Xupike Intelligent Technology Co., Ltd., the equipment features original factory manufacturing quality, including steel-formed columns and high-strength welded frames, ensuring durability. All components of the YK1800FR-PL-4HJ boom online winding machine are designed and manufactured in compliance with the strictest safety and quality standards.
The system automatically completes film application and film separation, ensuring perfect adhesion between the wrapping film and goods. A novel aluminum clamp controlled by pneumatic cylinders precisely holds the film without slipping during cutting. Integrated with heating wire film cutting and linear clamps, it achieves aesthetically pleasing and efficient sealing. Products can be directly transferred to the automated storage system for unmanned continuous packaging.

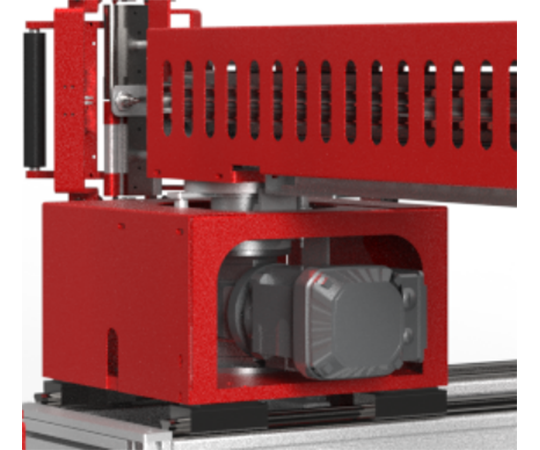

The rotation is powered by a motor, which coordinates with photoelectric energy to achieve precise positioning. The entire rotating mechanism is driven by a servo motor for lateral movement, and is synchronized with photoelectric sensors to accurately align with product and material bin positions.

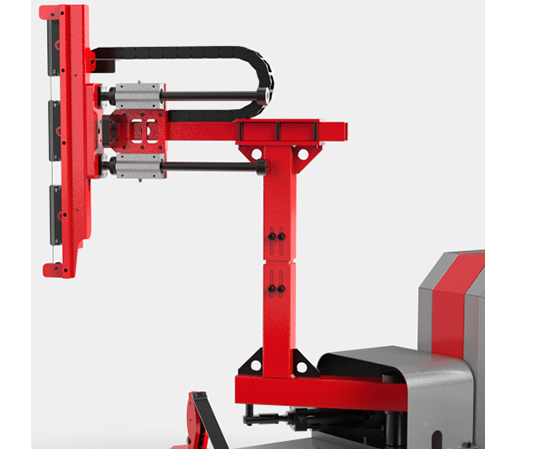

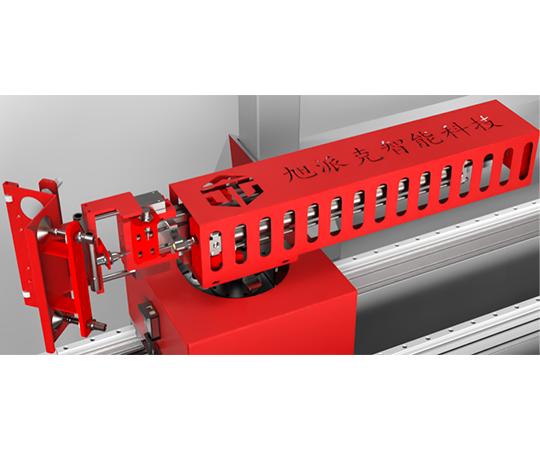

The gripper assembly can pivot 90 degrees in both directions, enabling the suction cup base to precisely lock onto the corner guard and securely hold it in place. The cylinder, paired with linear guides, extends and retracts to retrieve the corner guard.
The system features two parallel single-side silos for maximum corner protection storage, with built-in corner detection and automatic silo repositioning to reduce manual corner adjustment.
| 机器Equipment | 单位unit | 摇臂缠绕机配四头竖护角机（YK1800FR-PL-4HJ） |
摇臂机回转直径 Arm Rotating Diameter | mm | 3400 |
转臂速度 RPM | rpm | 18 |
膜架升降速度 Carriage up and down speed | m/min | 0-6.6 |
护角移动速度 Corner moving speed | m/min | 3-15 |
| 旋转速度 | rpm | 17.3 |
膜架类型 Film carrige | 预拉型Pre-stretch | |
薄膜预拉伸 Pre-Stretch | 0-250% | |
适应产品尺寸（长x宽） Pallet dimension(L*W) | mm | 800x1200 / 800x1200 |
最大产品高度 Max Height | mm | 标准1800mm |
电源电压 Voltage | V | AC380V+N+PE 50/60HZ |
装机功率 Install Power | KW | 4.0 |
薄膜尺寸 Film | kg | 宽度500mm，厚度15～25 μ，外径220mm，内径76mm，重量15KG/卷 |
护角尺寸 Corner Dimension | mm | 标准50*50*5-L=600/1800 (最大长度小于1800mm,其余可协商) 护角长度小于货物高度 |
