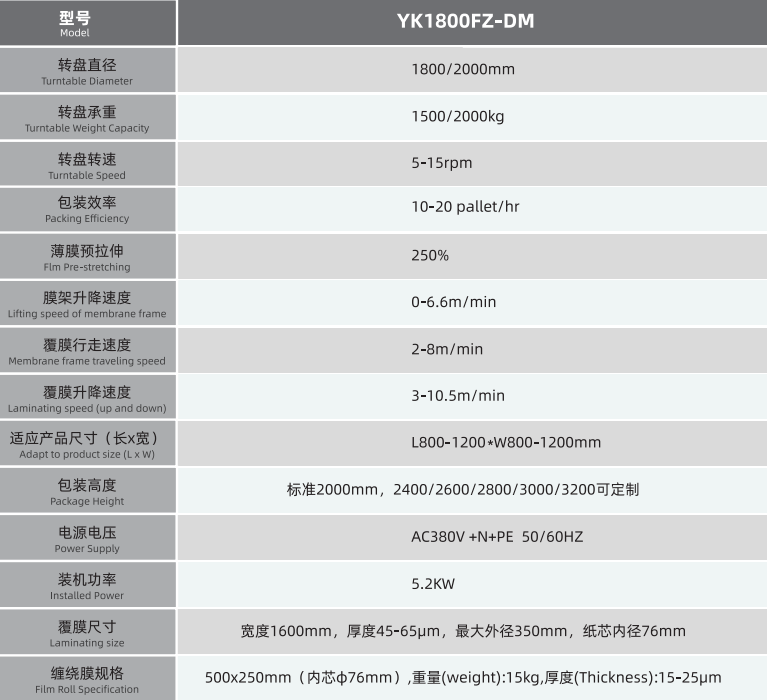

YK1800FZ-DM

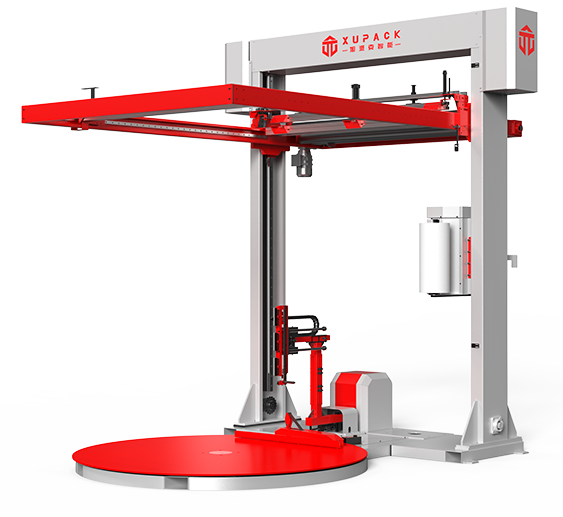

Film Laminating Wrapping Machine1800mm turntable
2000mm packing height
Max load weight:2000kg
250%pre-stretch rate
One-touch start,easy to operate

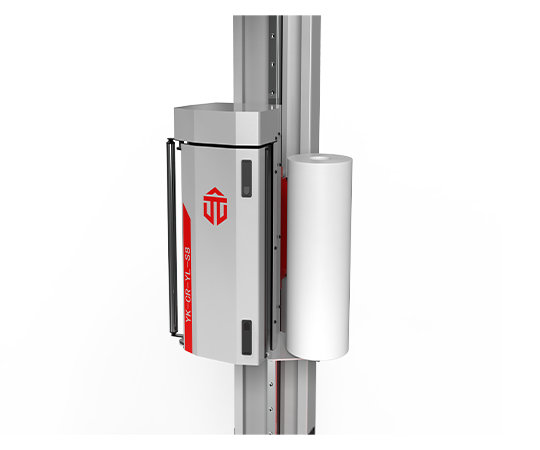

The film frame on the upper film holder features a mechanical tension control function: it can continuously stretch the packaging film regardless of the roll diameter. The automatic film release system employs pressure sensors for analog/constant tension film release, ensuring more uniform film distribution. The wrapping film can more effectively "hold" the goods. Door-opening film replacement saves time and enhances efficiency.

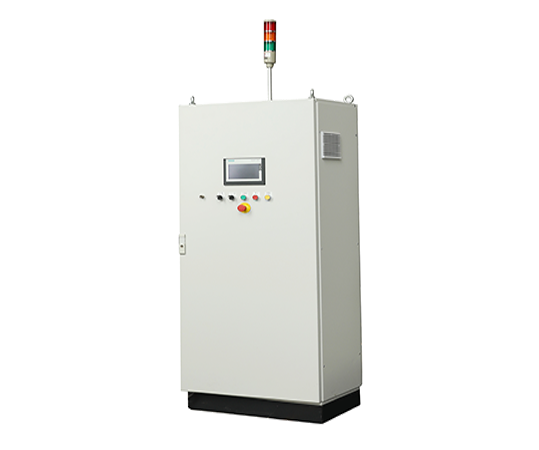

The electrical box can be installed on the outer side of the fence, with long-distance control via the wiring system.

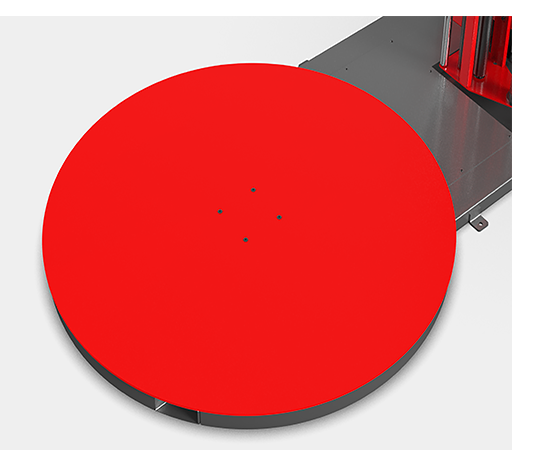

A high-precision anti-slip turntable, manufactured using German millimeter-level laser cutting technology, specifically engineered for high-strength working environments. The standard tray size is 2000mm.

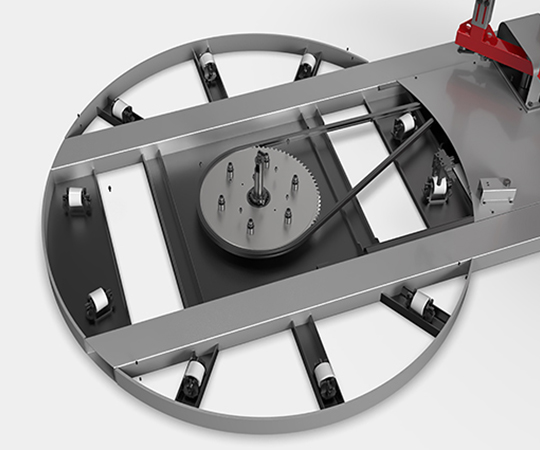

The roller height can be individually adjusted for better alignment with the rotating turntable, ensuring more stable load-bearing. Thanks to 10 aviation-grade wear-resistant and noise-reducing rollers, the YK1800FZ-DM pallet online winding machine operates almost silently even in quiet environments.
Certified by Zhejiang Xupike Intelligent Technology Co., Ltd., the original factory manufacturing quality ensures durable equipment with precision steel-formed columns. All components of the YK1800FZ-DM pallet online winding machine are designed and manufactured in compliance with the strictest safety and quality standards.

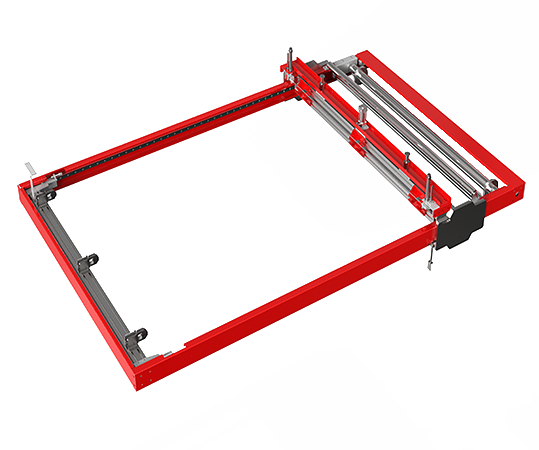

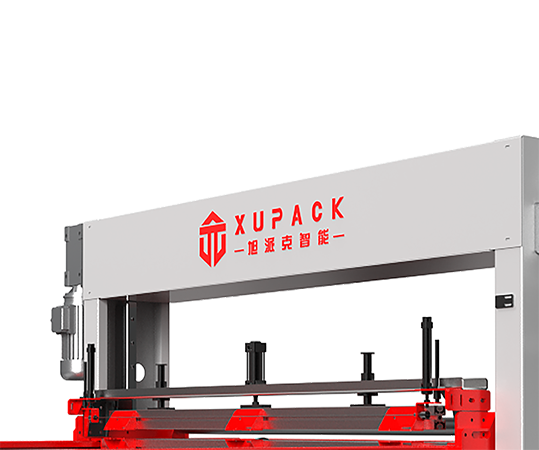

Linear guide system with chain drive, cam-type pneumatic claw film clamping mechanism. Customizable film coverage length, instant film breaking by heating wire. Precise film coverage dimensions.

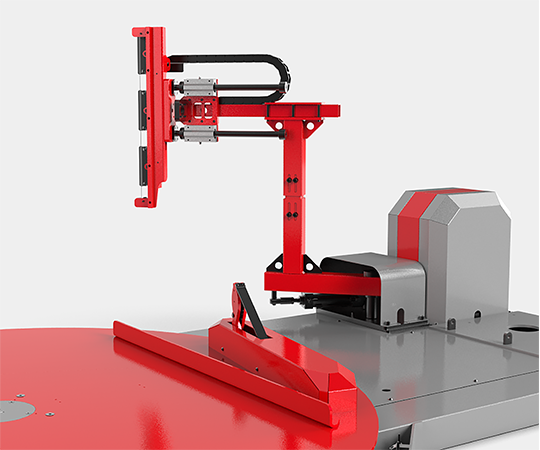

Automatically completes film application and removal while ensuring perfect adhesion between the wrapping film and palletized goods. The cylinder-controlled aluminum clamp precisely holds the film and prevents slippage during cutting.

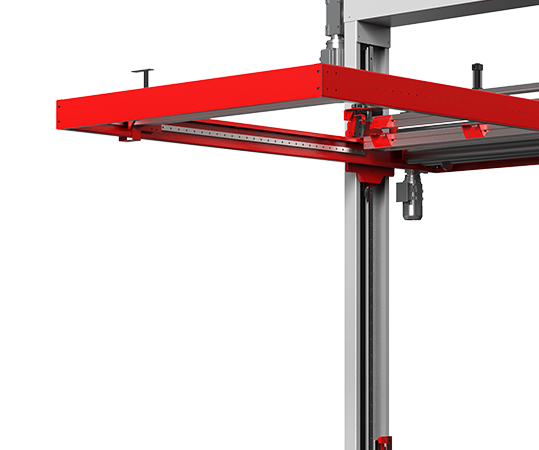

The linear guide provides rigid support, reduces shaking, and ensures a smooth lifting process. The sprocket is driven by a motor to move the chain up and down, achieving the lifting function. 16A chain drive, structurally safe, stable, and reliable.
