YK1650FZ

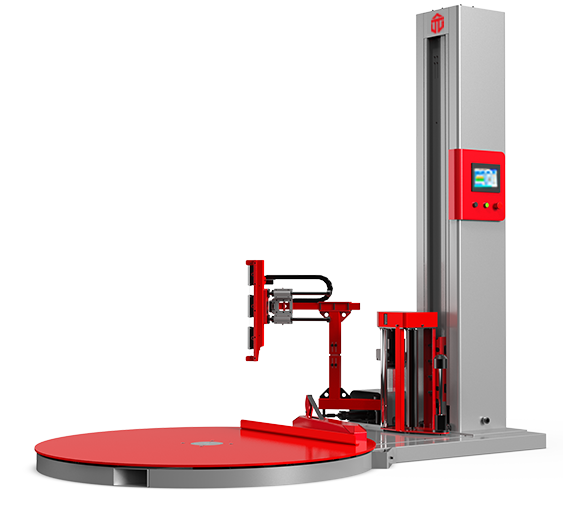

Intelligent remote control Wrapping MachineServo pre-stretch remote wrapping machine .
Servo system,with precise and fast movement.
1650mm turntable.
2000mm packing height
Max load weight:1500kg
250% pre-stretch rate.
One-click start,easy to operate

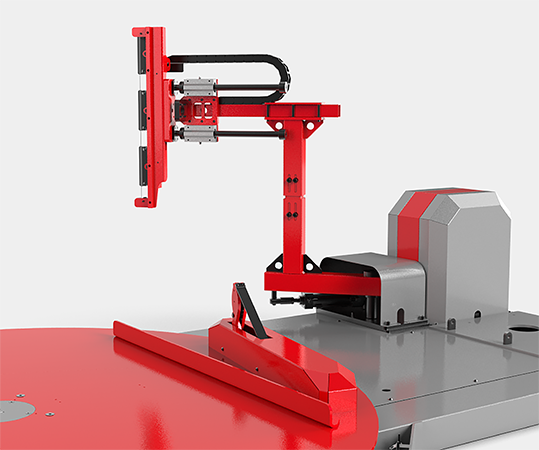

Automatically film cutting and welding system, ensuring perfect adhesion between the wrapping film and the pallet cargo. The new aluminum fixture controlled by a cylinder can accurately grip the film and prevent slipping during the cutting process.

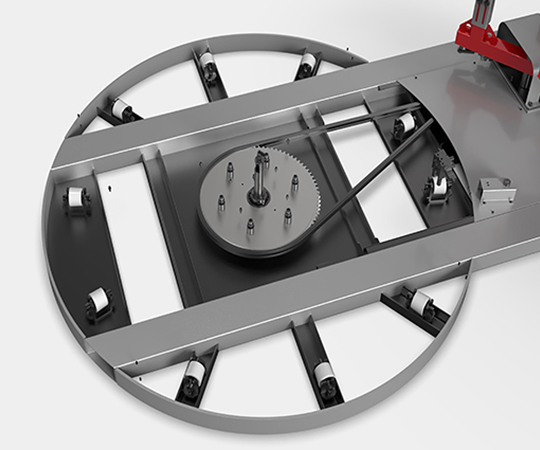

Thanks to 12 aviation grade wear-resistant and silent rollers, even in quiet workplaces, you can hardly feel the working sound of YK1650FZ intelligent remote control wrapping machine.

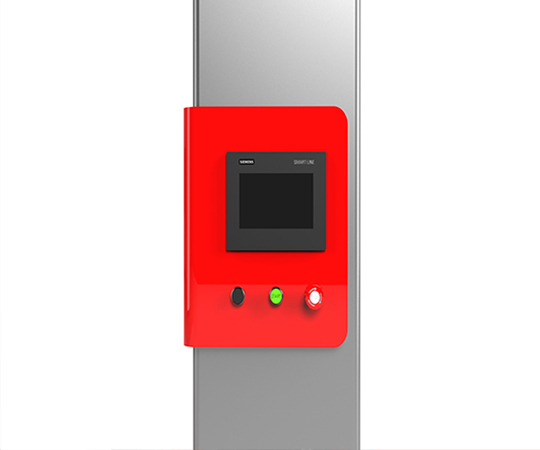

The newly designed mechanical button control panel can easily set all program functions. The functions that can be implemented on the control panel include: local reinforcement winding; 3 types of operation settings for storage; The lifting speed, film release speed, and turntable speed of the film rack can be adjusted; Top or bottom wrapping, counter; Keyboard lock, etc.

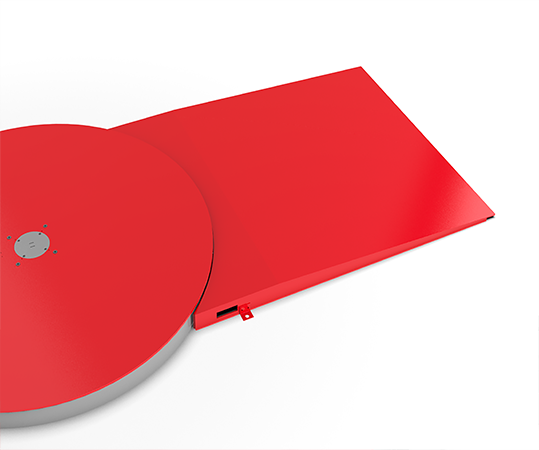

The function of a ramp is to use a platform with a sloping surface to push goods onto pallets when there is no hydraulic forklift on site but a manual handling jacket is available and the conditions for digging a pit are not possible. The advantage is that it solves the load-bearing problem of forklift type winding machines, but the disadvantage is that the length of the occupied space is extended.
