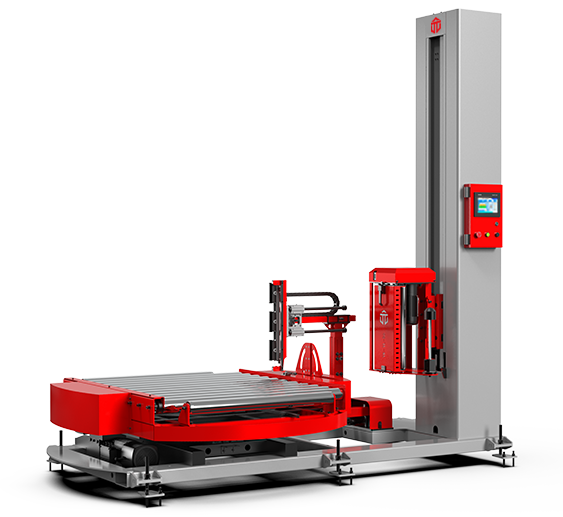

YK2000FHZ-PL

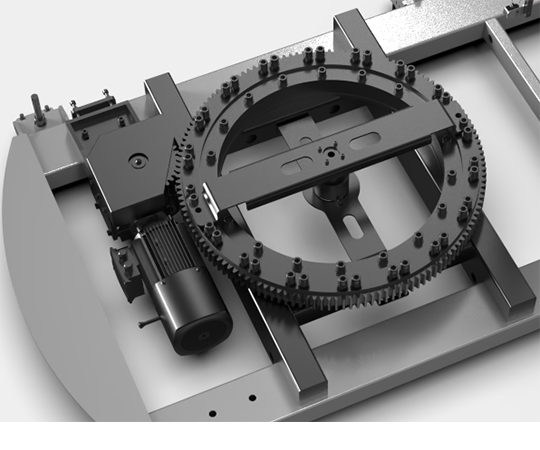

Rotary Support online Wrapping MachineThe turntable employs a high-strength slewing
support bearing for its transmission/drive mechanism.

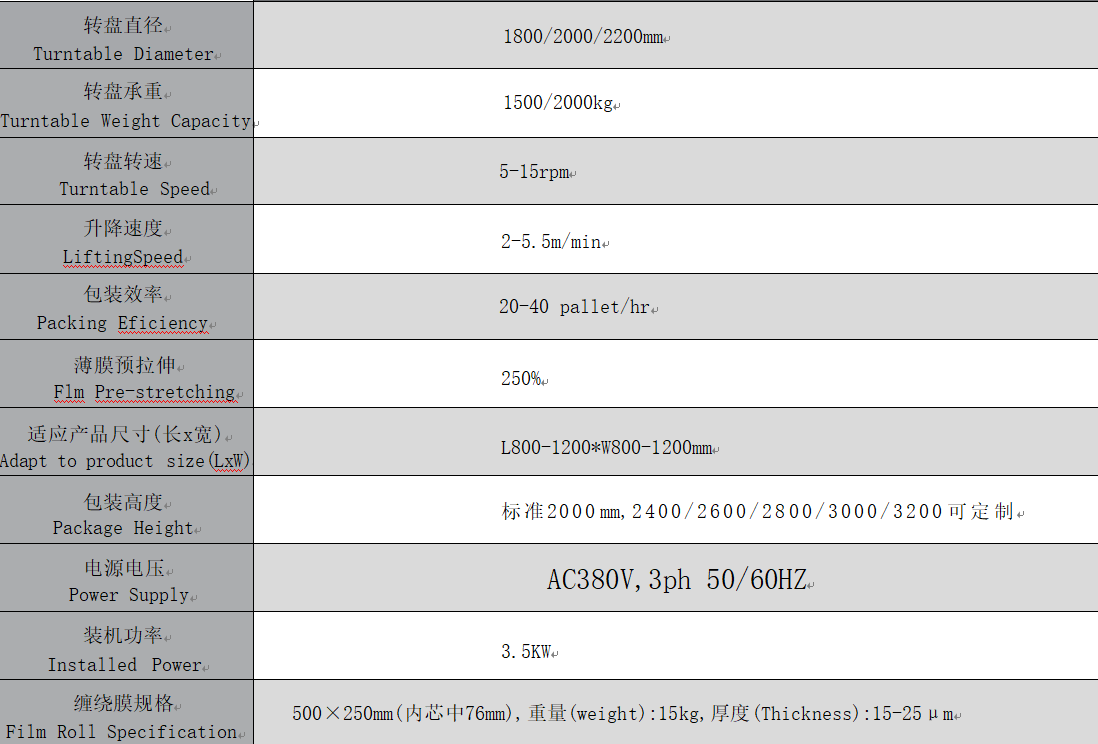

1800mm turntable
2000mm packing height Max load weight:2000kg 250%pre-stretch rate
One-click start,easy to operate

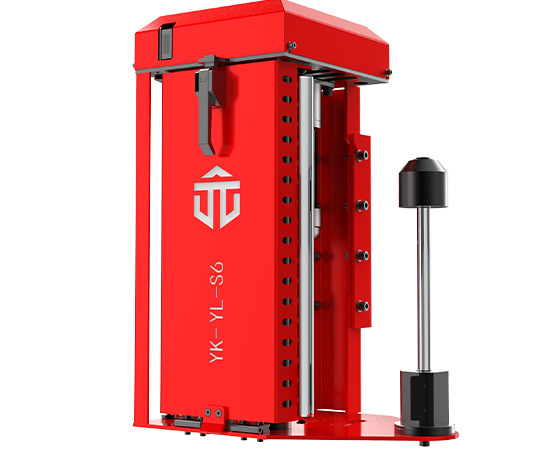

The film frame is equipped with a mechanical tension-retraction function on the upper film holder: it can continuously stretch the packaging film regardless of the roll diameter. The automatic film release inspection utilizes pressure sensors, enabling analog/constant tension film release for more uniform film distribution. The wrapping film can more effectively "clasp" the goods. Door-opening film replacement saves film threading time and enhances efficiency.

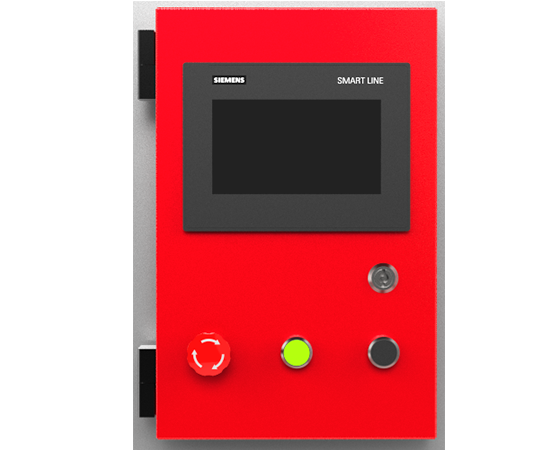

The newly designed mechanical button control panel allows easy configuration of all program functions. The control panel supports the following features: localized reinforcement winding; storage of three operational settings; adjustable speeds for film frame lifting, film ejection, and turntable rotation; top or bottom winding; counter; and keyboard lock.

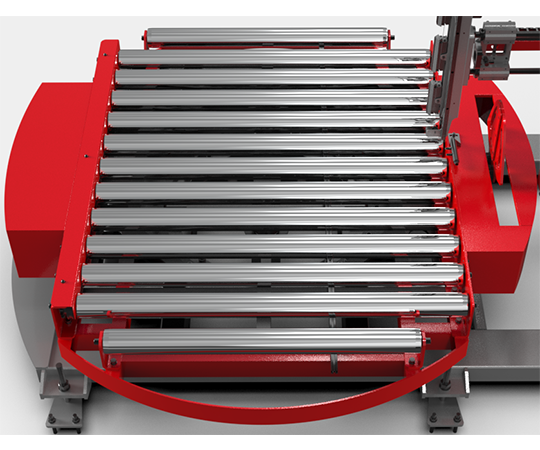

The dynamic turntable system utilizes galvanized rollers and pallet rotary supports, ensuring safe and reliable operation. Customized conveyance solutions can also be provided according to clients' specific requirements.

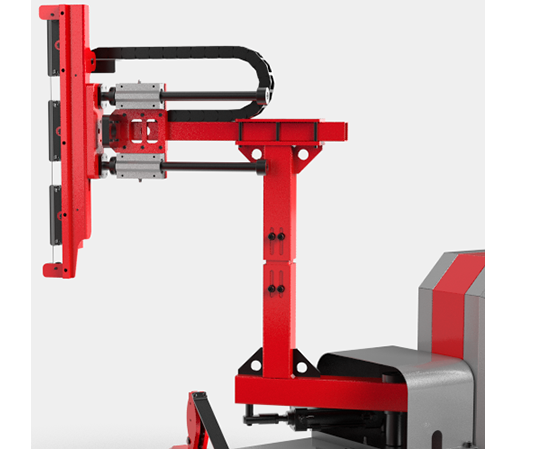

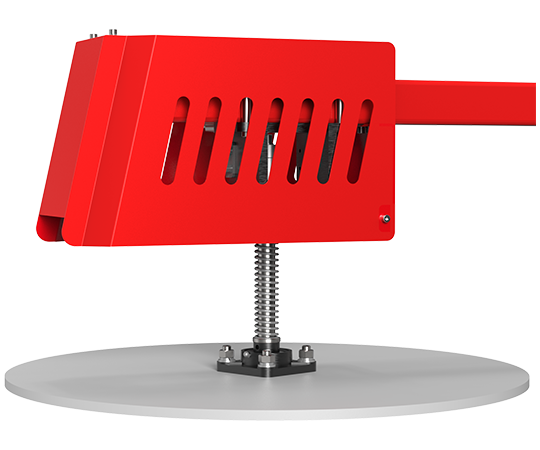

This equipment can be customized with a pressure top mechanism. Its main function is to prevent the cargo from tipping over during winding when the cargo is light or small in size.
