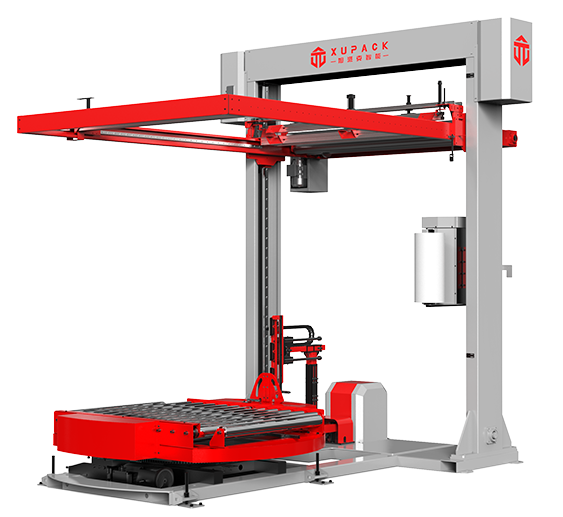

YK2000FHZ-PL-DM
Online Top Film and Wrapping MachineThe turntable employs a high-strength slewing
support bearing for its transmission/drive mechanism.

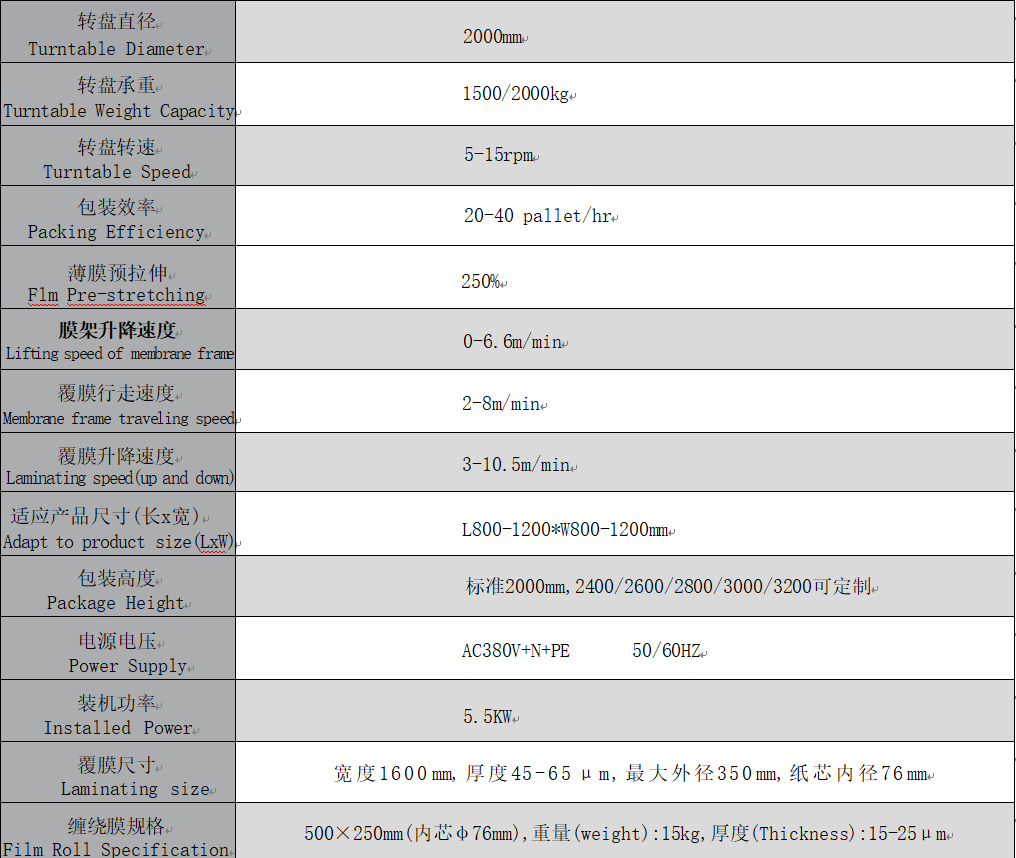

2000mm turntable
2000mm packing height
Max load weight:2000kg
250%pre-stretch rate
One-click start,easy to operate

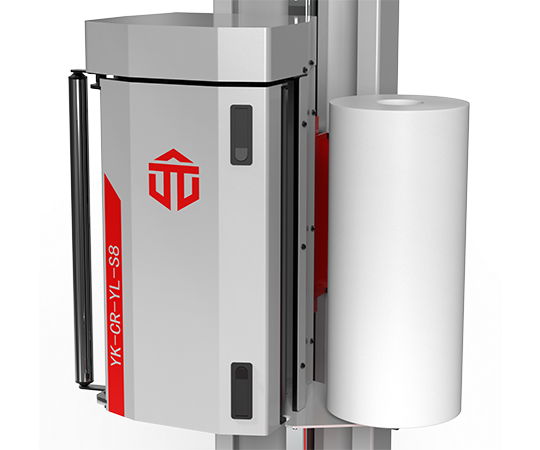

The film frame is equipped with a mechanical tension-retraction function on the upper film holder: it can continuously stretch the packaging film regardless of the roll diameter. The automatic film release inspection utilizes pressure sensors, enabling analog/constant-tension film release for more uniform film distribution. The wrapping film can more effectively "clasp" the goods. Door-opening film replacement saves film threading time and enhances efficiency.

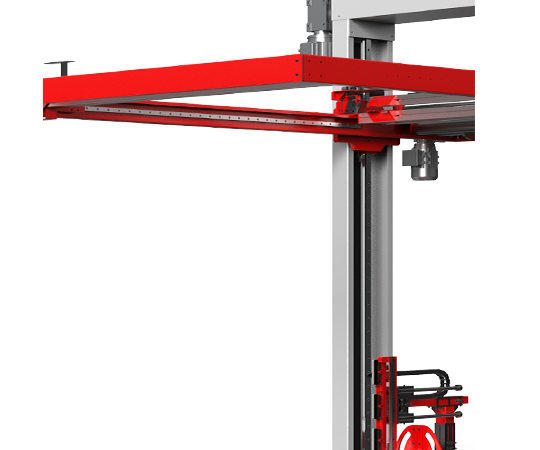

The linear guide provides rigid support to minimize shaking and ensure smooth lifting. The motor drives the sprocket, which moves the chain up and down to achieve the lifting function.
16A chain drive, featuring structural safety, stability, and reliability

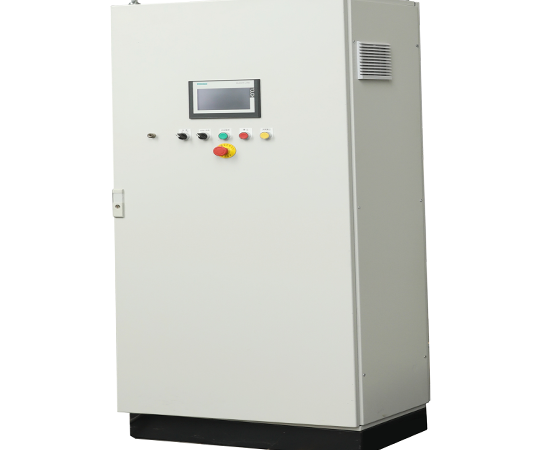

The electrical box can be installed on the outer side of the fence, with remote control via the wiring system.

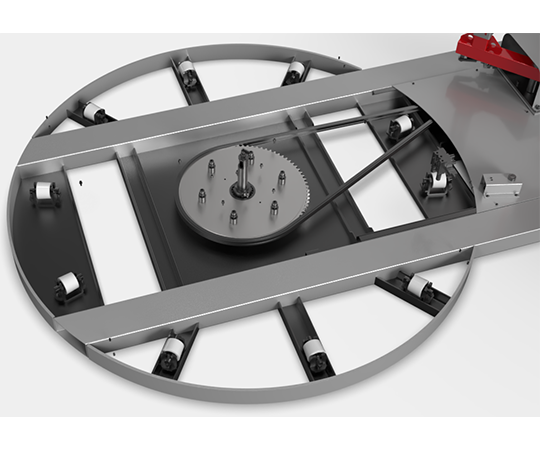

The adjustable roller height ensures optimal alignment with rotating trays for enhanced load-bearing stability. Featuring 10 aviation-grade wear-resistant silent rollers, the YK2000FZ-PL-DM pallet online winding machine operates with virtually inaudible noise even in quiet environments.

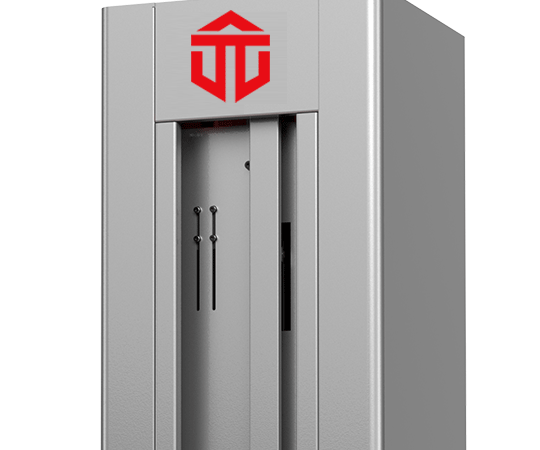

Certified by Zhejiang Xupike Intelligent Technology Co., Ltd., the original factory manufacturing quality ensures durable equipment with precision steel-formed columns. All components of the YK2000FZ-PL-DM pallet online winding machine are designed and manufactured in compliance with the strictest safety and quality standards.

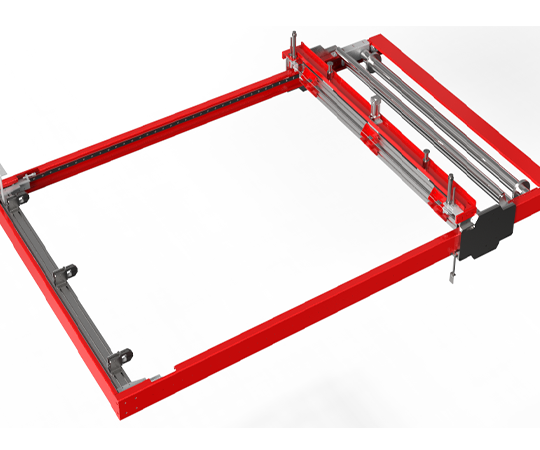

Linear guide system with chain drive, cam-type pneumatic claw film clamping mechanism. Customizable film coverage length, instant film breaking by heating wire. Precise film coverage dimensions.

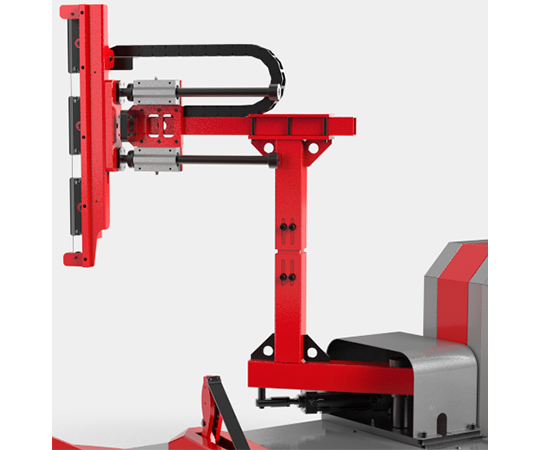

Automatically completes film application and removal while ensuring perfect adhesion between the wrapping film and palletized goods. The cylinder-controlled aluminum clamp precisely holds the film and prevents slippage during cutting.

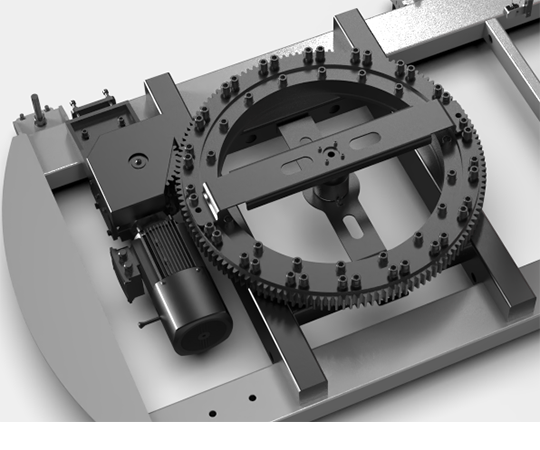

The rotary table employs a rotary support bearing drive system, featuring higher strength support, more precise transmission, and lower noise levels. The mechanism itself exhibits minimal resistance, ensuring stable and reliable transmission.
