YK1800-FR-DSWM

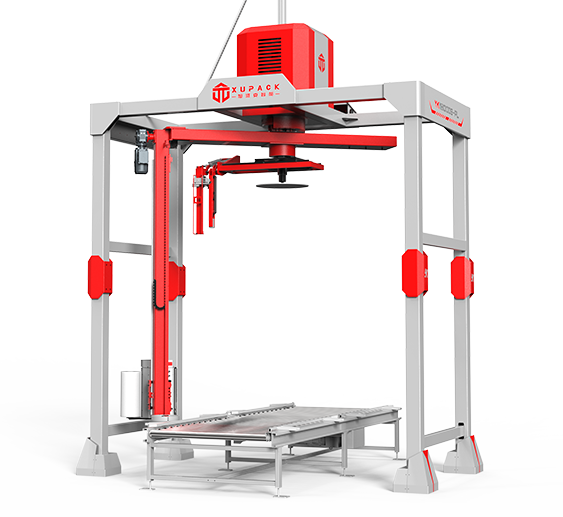

Rotary Arm Online Pallet wrapping MachineThe Rotary Arm Cover Film Online Wrapping Machine is a structurally unique wrapping and packaging device that combines swing-arm type wrapping with top-film lamination.It is an expert solution for addressing the overall packaging and top waterproofing challenges of heavy-duty,oversized,and irregularly shaped goods
The YK1800FR-PL-DSWM, Xupike's latest model, features automatic film winding and precise top pressing functions. Its sensor system effectively addresses excessive film tailing, completely eliminating film slippage risks. Specifically designed for high-humidity storage environments and industries like chemical and new energy, this model prevents scalding hazards and eliminates film head failures in vertical warehouses. With remote network monitoring capabilities, it provides real-time usage and performance data through cloud-based solutions, enabling seamless optimization to meet Industry 4.0 requirements.
The system can reduce the number of downtime to the minimum and better manage the maintenance work.
It provides real-time solutions when failures occur and enables full remote upgrades of machine management software, significantly reducing downtime and lowering costs.

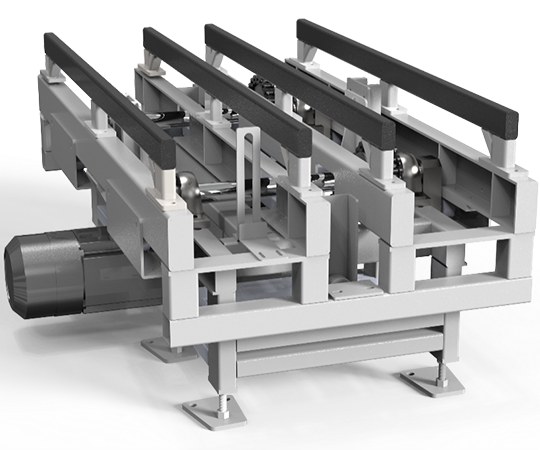

The pallet lifting system in the conveyor is driven by pneumatic, electric or hydraulic. Through the pallet lifting, the goods and pallets can be completely wrapped together, thus ensuring the maximum stability of the pallet goods.
The maximum load of the pneumatic hoist is 1500KG.
The maximum load of the electric hoist is 2000KG.
The maximum load capacity of the hydraulic system exceeds 2000KG.

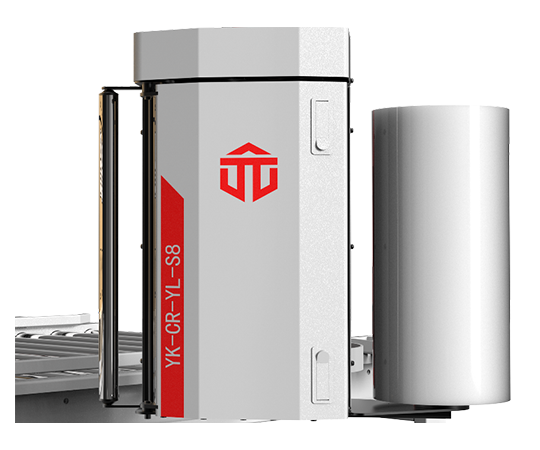

The film frame utilizes the latest YK-YL-S8 pre-stretched film frame, available in two stretch ratios (250% and 300%). The internal drive mechanism has been upgraded, along with the pre-stretched film roller's rubber coating method and material. This design ensures enhanced transparency during film stretching while allowing up to 6/12 force values to be applied on the tray.

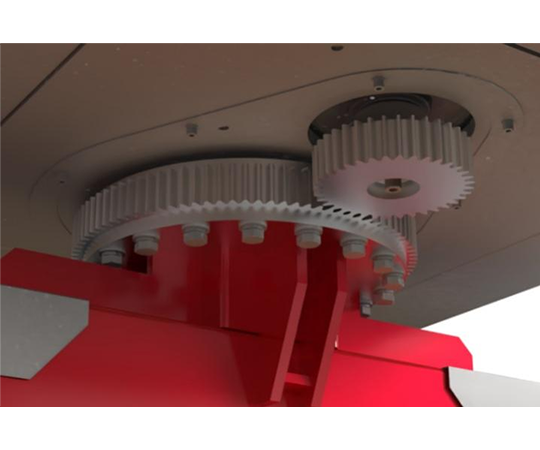

The heavy-duty bearing employs a pinion gear drive system, with a robust frame ensuring maximum operational reliability under demanding conditions. A frequency converter controls the rotating arm to operate at peak speed, thereby extending the service life of the transmission system.

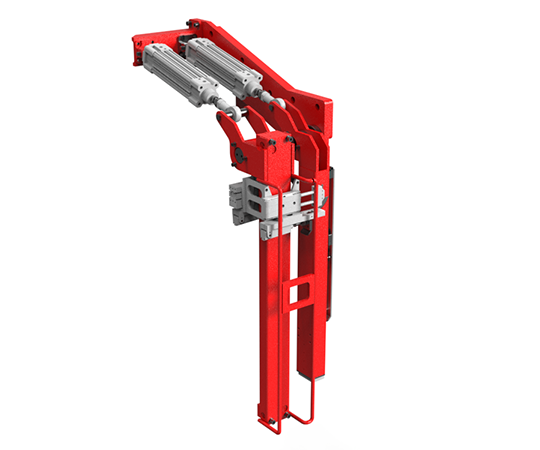

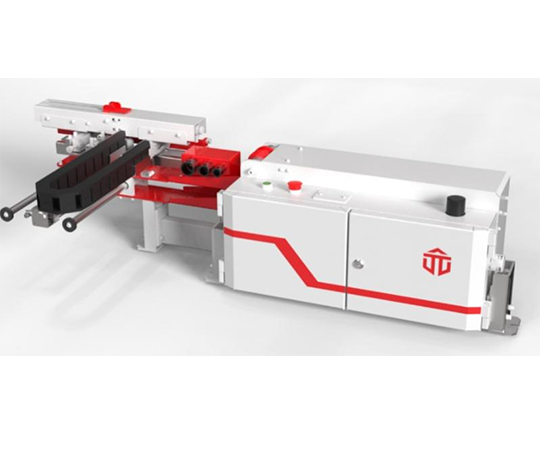

Equipped with a constant-temperature sealing device featuring ±1°C temperature control precision, combined with heating wire film cutting functionality and linear clamp, it ensures aesthetically pleasing and efficient sealing. The products can be directly transferred to the automated storage system, enabling unmanned continuous packaging.

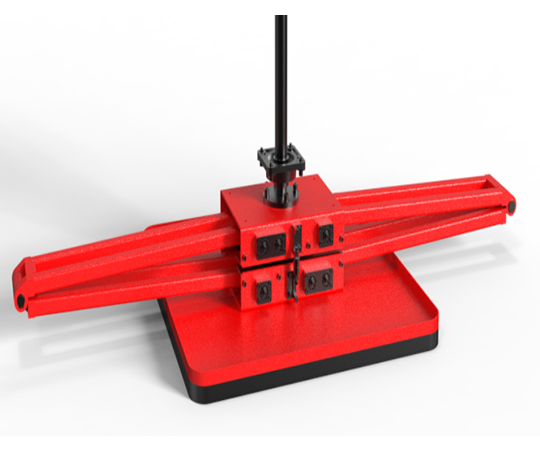

The diamond-shaped pressure plate applies downward pressure to the top of the cargo, helping to stabilize the packaging during winding. It accommodates a wider range of winding heights and reduces the required top space above the machine.
