YK1800-FRS-PL-CS

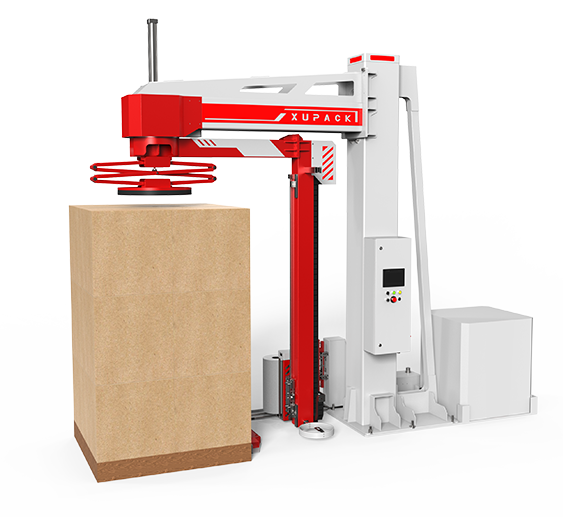

Single Column Rotary Arm Wrapping MachineA single-column rotary arm stretch wrapper is a specialized packaging device designed forspace-constrained sites. Its core feature is a rotating arm supported by a central column. Duringoperation, the arm, carrying the film, rotates and lifts around the load, achieving a top-downspiral wrapping pattern suitable for tall, irregular, or tall and narrow goods.

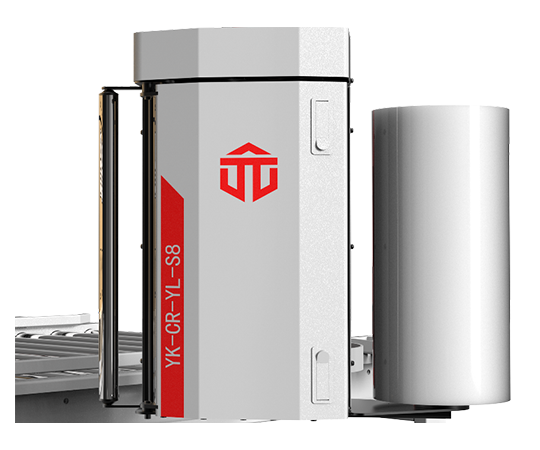

The film frame utilizes the latest YK-CR-YL-S8 pre-stretched film frame, available in two stretch ratios (250% and 300%). The internal drive mechanism has been upgraded, along with the pre-stretched film roller's rubber coating method and material. This design ensures enhanced transparency during film stretching while allowing up to 6/12 stress values to be applied on the tray.

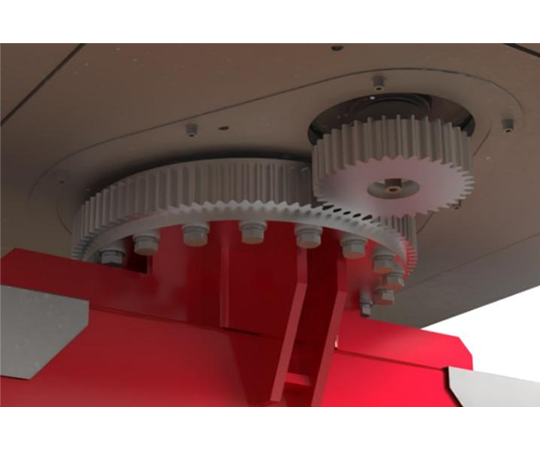

The heavy-duty bearing employs a pinion gear transmission system, with a robust frame ensuring maximum operational reliability under demanding conditions. A frequency converter controls the rotating arm to operate at peak speed, thereby extending the service life of the transmission system.

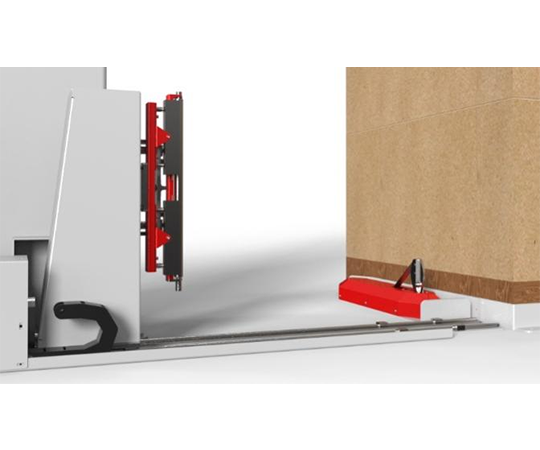

Automatically completes film application and removal while ensuring perfect adhesion between the wrapping film and palletized goods. The cylinder-controlled aluminum clamp precisely holds the film and prevents slippage during cutting.

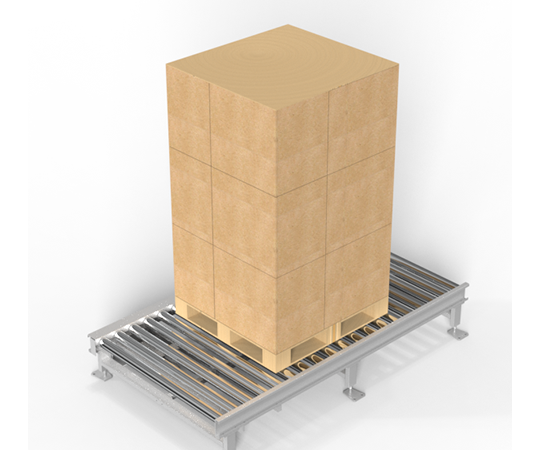

With years of industry expertise, Xupaike's equipment covers 95% of product sizes and specifications available on the market, and is compatible with standardized pallet production lines to achieve uniformity.

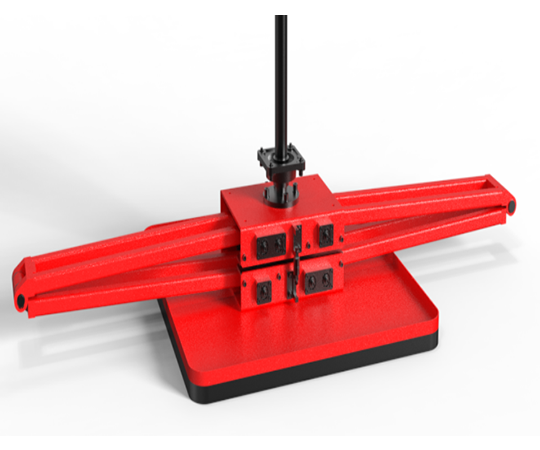

The diamond-shaped pressure plate applies downward pressure to the top of the cargo, helping to stabilize the packaging during winding. It accommodates a wider range of winding heights and reduces the required top space above the machine.
