YK1800FR-PL-GS
High Speed Ring Wrapping MachineHigh-Speed Ring Wrapper: The Ultimate Automated Packaging Solution
Engineered for High-Volume Industrial Demands

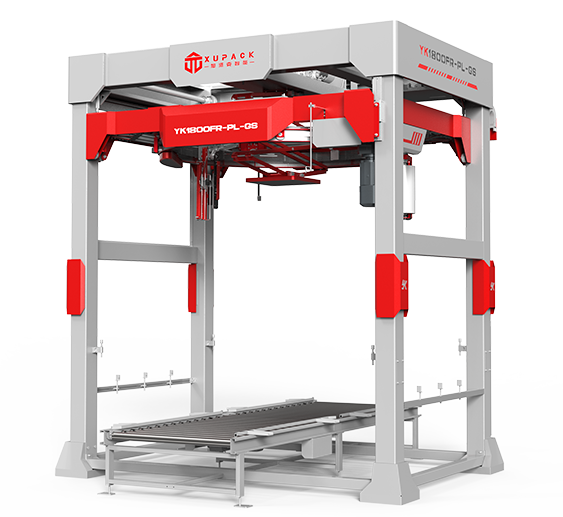

The [YK1800FR-PS-GS] High-Speed Ring Wrapping Machine is the pinnacle of stretch wrapping technology, designed specifically for production lines requiring extreme speed and reliability. Unlike traditional wrappers, the ring-style structure allows the wrapping head to orbit the stationary pallet at high RPMs, delivering a perfectly stabilized load every time without risking product damage from centrifugal force.
Core Advantages & Features
apable of processing up to 90-120 pallets per hour, making it the ideal choice for massive beverage, food, and logistics distribution centers.

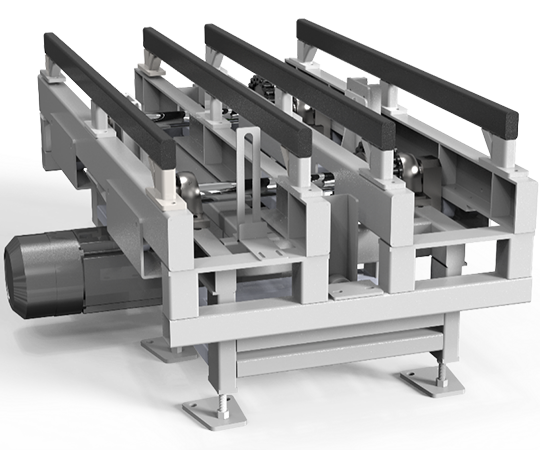

The pallet lifting system in the conveyor is driven by pneumatic, electric or hydraulic. Through the pallet lifting, the goods and pallets can be completely wrapped together, thus ensuring the maximum stability of the pallet goods.
The maximum load of the pneumatic hoist is 1500KG.
The maximum load of the electric hoist is 2000KG.
The maximum load capacity of the hydraulic system exceeds 2000KG.
The electric lifting system delivers faster speed and enhanced stability, featuring a scissor-arm design. Its position-checking mechanism embodies the latest design philosophy, effectively preventing the lifting belt from retracting when fully extended.

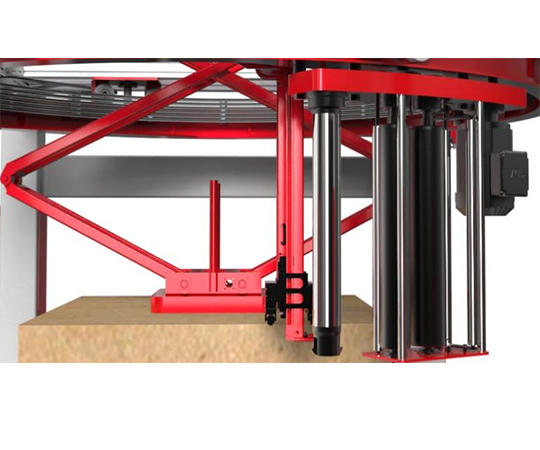

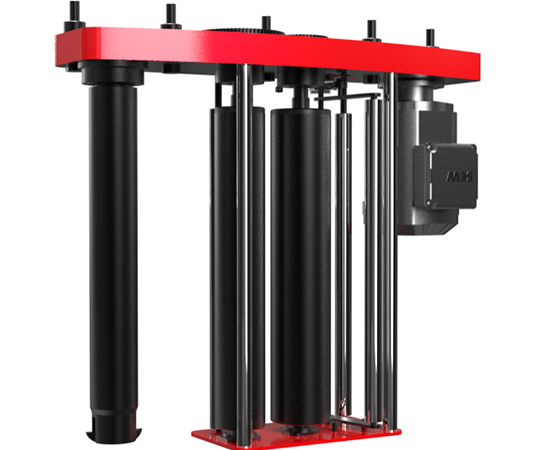

The film frame utilizes the latest high-power, high-efficiency pre-stretching technology, available in two stretch ratios: 200% and 300%. The internal drive mechanism has been upgraded, along with the pre-stretching roller's rubber coating method and material, ensuring enhanced transparency during stretching while allowing up to 6/12 force values to be applied on the tray.
The quick membrane replacement feature has been upgraded
Equipped with automatic film winding and precise top pressing functions, the sensor system effectively addresses excessive film tail length while completely eliminating film slippage risks. Specifically designed for high-humidity storage environments and industries such as chemical processing and new energy sectors, the YK1800FR-PL-GS features a non-thermal film function to prevent operational hazards and vertical warehouse film head failures. With networked remote monitoring capabilities, it provides real-time usage and performance data through cloud-based solutions, enabling seamless optimization to meet Industry 4.0 requirements.
The system can reduce the number of downtime to the minimum and better manage the maintenance work.
It provides real-time solutions when failures occur and enables full remote upgrades of machine management software, significantly reducing downtime and lowering costs.
An automatic film-coating system covering the upper surface of the tray to achieve dustproof and waterproof effects
